This is the full kit needed for funning the non-return fuel set up in the older, return style (MR2) fuel system.
This kit provides you with all the quality components to ensure a leak-free fuel system that also quickly, smoothly, and accurately regulates and controls available fuel flow in the 2GR setup. The heart of the kit is a workhorse AEM fuel regulator we chose as a solid platform for consistent fuel supply. This regulator is a 1:1 boost relative regulator and will work perfectly in forced induction setups with an additional reference boost/vacuum line to the regulator. (Factory/NA applications this port stays open). Fuel settings for a factory 2GR setup is 45psi with the car running.
This kit also comes with all the hardware and lines necessary to go from a factory MR2 fuel system to an adjustable, returnless setup. A CNC laser-cut 6061 aluminum bracket mounts the regulator to the Bank 2 (front) cylinder head. This provides a clean, efficient travel path for the fuel and keeps your fuel lines safe, kink-free, abrasion-free, and secure for long-term reliability. The supplied Red Horse AN fitting provides the highest quality fittings for ease of mind that you won't suffer from leaks. We also include a new fuel filter to guarantees clean fuel on the 25+-year-old systems. The main feed lines are 6AN 3/8' hose with a 1/4' barbed return line. Some assembly is always required.
Unless you already have an upgraded unit, we recommend you upgrade your fuel pump when doing a swap, too! Aeromotive Fuel Pump

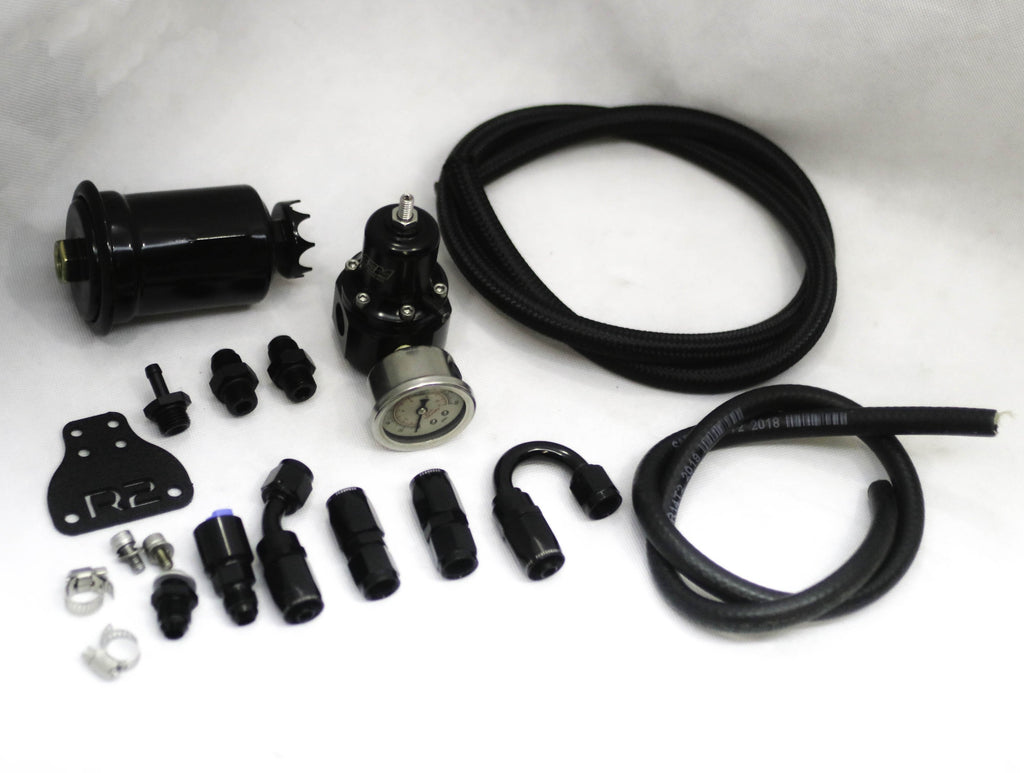

- AEM Adjustable Fuel Regulator w/ Guage Click Here for More Info
- 2GR -6AN Adapter
- Toyota fuel filter -6AN adapter
- 2 ORB adapters
- 2 AN -6AN RedHorse straight fittings
- 1 AN -6AN RedHorse 45-degree fitting
- 1 AN -6AN RedHorse 90-degree fitting
- 1/4" Barb Adapter
- Braided fuel line (stainless or black nylon)
- R2 Regulator Mount
- Fuel Filter
- Necessary Clamps and Mounting Hardware
Different combinations of AN fittings are available for custom setups.
*If you are swapping an AW11 with the upside-down fuel filter (inlet on top and outlet on the bottom) select the 180-degree -6AN adapter option.
RAT2 Motorsports is not liable for damages resulting in fuel leaks and/or fires. CHECK for LEAKS!
